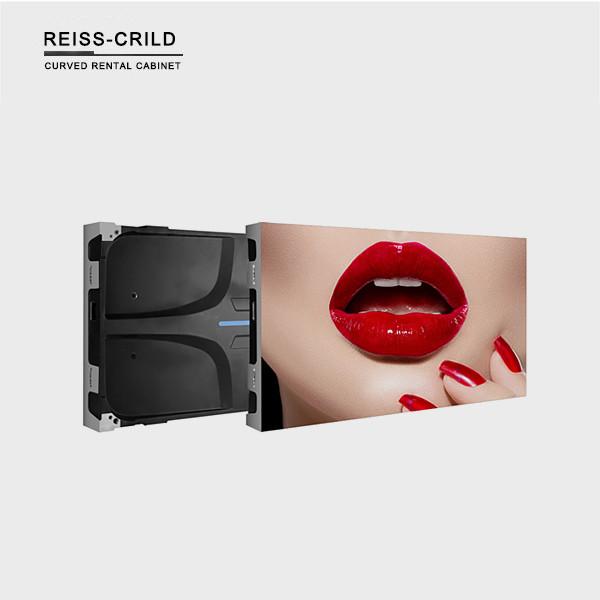

IP31 Full Color 1400 Nits SMD1010 P1.25 Indoor LED Panel

    Buy cheap IP31 Full Color 1400 Nits SMD1010 P1.25 Indoor LED Panel from wholesalers

    Buy cheap IP31 Full Color 1400 Nits SMD1010 P1.25 Indoor LED Panel from wholesalers
    • Buy cheap IP31 Full Color 1400 Nits SMD1010 P1.25 Indoor LED Panel from wholesalers
    • Buy cheap IP31 Full Color 1400 Nits SMD1010 P1.25 Indoor LED Panel from wholesalers

    IP31 Full Color 1400 Nits SMD1010 P1.25 Indoor LED Panel

    Ask Lasest Price
    Brand Name : Reiss
    Certification : ROHS CE FCC UL EMS
    Price : Negotiable
    • Product Details
    • Company Profile

    IP31 Full Color 1400 Nits SMD1010 P1.25 Indoor LED Panel

    Low Attenuation Small Pitch LED Display High Refresh Rate Good Vision Effect



    We offer many kinds of LED screen solutions, such as Advertising LED Screen, Rental LED Screen, Stadium Perimeter LED Screen, Mobile Trailer LED Screen, Soft Flexible Curved LED Display, Transparent Ultra-thin LED Curtain and various kinds of LED Video Walls for stage background.


    Item
    Parameter
    Pixel Pitch
    1.25mm(H*V)
    Pixel Density
    640000 dots/㎡
    LED Shape
    SMD1010
    LED Configuration
    1R1G1B
    Module Size
    192mm*96mm
    Module Resolution
    153.6(W)×76.8 (H)pixels
    Driving Mode
    1/24Scan,constant current
    Brightness
    ≥1400 Nits
    Module weight
    0.155kg
    Module thickness
    14.66mm(without magnet)
    26.55mm(with magnet)
    Contrast
    3000:1
    View Angle
    140°(horz.), 140°(vert.)
    Module max power
    20 W
    Viewing distance
    ≥1.25m
    Gray Scale
    12-16bits for red,green,blue
    Colors
    16.7 M
    Working voltage
    AC 110v/220v 50-60Hz
    Frame Frequency
    50Hz-75Hz
    Refresh Rate
    ≥1920Hz
    Operation Control System
    Nova; Linsn;Colorlight....
    Support Input
    Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
    Stock Temperature
    (-40℃~+85℃)
    Operating Temperature
    (-20℃~+50℃)
    Operating Humidity
    10-90% RH
    Life Span
    100,000Hours
    MTBF
    ≥10,000Hours
    Protection level
    IP31
    Flatness of the screen
    ≦1mm
    Control Distance
    Cat5:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km
