    Front Service SMD2727 P3.91 Outdoor LED Video Wall 5500nits

    Ask Lasest Price
    Brand Name : REISS
    Model Number : P3.91
    Certification : ROHS CE FCC UL EMS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100000
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Front Service SMD2727 P3.91 Outdoor LED Video Wall 5500nits

    P3.91 Indoor Front Maintenance LED Display Lightweight Rental LED Screen Panel
    3.91mm pixel pitch, 1,100nits+ brightness (5,000 nits), indoor rental or fixed applications

    Silu`s front maintenance LED screen series
    SMD2121 LED lamps
    MBI5153 or CH2153 driving ICs
    2 Layers 1.6mm Thickness PCB
    250mmx250mm Size LED module
    500mmx500mm or 500mmx1000mm Size LED cabinet
    Slim and lightweight support easy and quick seamless assembling
    3.9m~100m better viewing distance (according to the video wall size)
    160° Horizontal and 140° Vertical wide viewing angles
    3840Hz high refresh rate guarantee that no scan line when taking photos and videos
    High colour uniformity and fidelity offers vivid audio-visual enjoyment
    Silu`s P3.91 Indoor Front Maintenance LED Display Lightweight Rental LED Screen Panel is a cost-effective indoor LED display for both rental and fixed installations, it is designed with standard led panel size 250mm*250mm, and the LED cabinet should be 500mm*500mm, 500mm*1000mm (die-casting aluminum for rental) and 500mm*1000mm, 1000mm*1000mm (aluminum or steel material for fixed installation). The cost-saving P3.91 Indoor Front Maintenance LED Display Lightweight Rental LED Screen Panel offers more than 1,000nits (indoor), 1100nits brightness and 3840 Hz refresh rate, it is cost saving and widely usages without losing any quality.

    The P3.91 Indoor Front Maintenance LED Display Lightweight Rental LED Screen Panel is using MBI or Chipone brand high-quality driver IC solution with anti-ghost function. And ≥ 3840Hz refresh rate enables operators and users to do live broadcasting, lifelike animated picture and videos bring the viewers an eye feast.

    By using Nationstar SMD2121 (indoor) LEDs, the P3.91 Indoor Front Maintenance LED Display Lightweight Rental LED Screen Panel delivers high-quality display images and longer lifetime.

    With CNC processing, the range of tolerance is controlled within 0.1mm that guarantees the seamless assembly and perfect performance is presented.

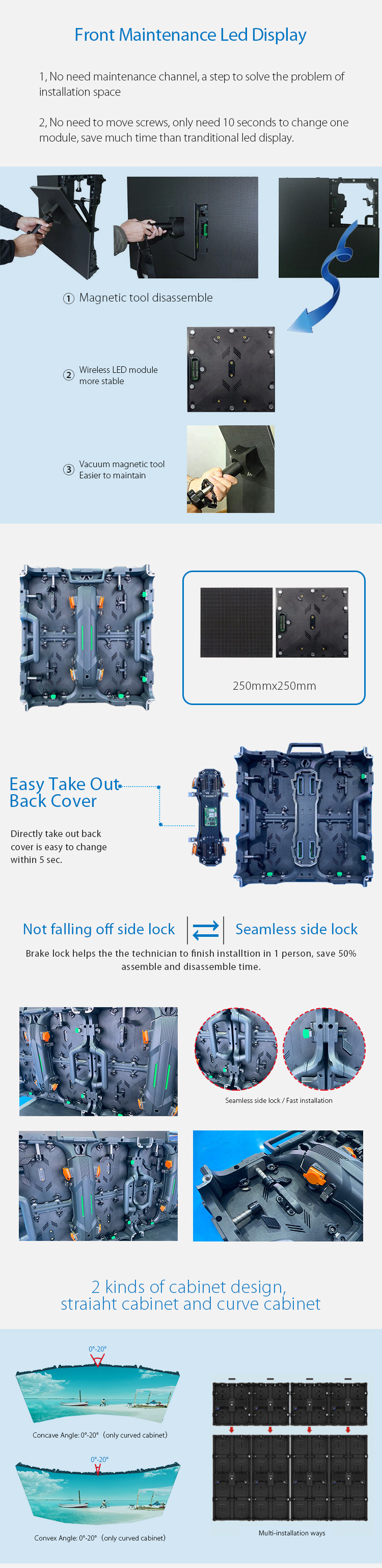

    Modularization design makes assembly and maintenance quickly and efficiently, and front and rear maintenance are available.

    +/- 15° angle set LED cabinet lock for concave and convex radian design optional, help the LED video wall creative and changeable designed by the users.

    Our P3.91 Indoor Front Maintenance LED Display Lightweight Rental LED Screen Panel supports both rental and fixed installations, which always be an ideal choice for mounting a large indoor high-definition LED screen wall.



    Full Color P3.91 LED Display
    Main
    Model
    CK-P3.91-16S
    Module
    Pixel pitch(mm)
    3.91
    LED Lamp Model
    SMD2525
    Module Size (mm)
    250*250
    (W*H)
    Module Resolution (W*H)
    64*64
    Driving Mode
    Constant drive
    Scan Mode
    1/16
    Pixel configuration (R,G,B)
    1,1,1
    Color temperature (K) :
    3200-9300
    Grey scale/colors
    256levels of each color(RGB)/16.7M colors
    Cabinet
    Standard Cabinet Size(mm)
    500*500*85
    (W*H*T)
    Cabinet Resolution (W*H)
    104x208
    Cabinet Module Number
    8PCS
    IP Grade
    IP31
    Cabinet Weigh(kg)
    10.5
    Cabinet Material
    Die Casting Aluminum
    Display
    Best Viewing Distance(m)
    4.5-100
    Pixel Density (dot/m2)
    43264
    Brightness (cd/m2)
    ≥5500
    Power Max Consumption (W/m2)
    ≤2000
    Power Average Consumption (W/m2)
    1000
    View angle
    H:140; V:140
    system Specification
    Control host (CPU) :
    Pentium4 or above
    Operating system:
    WIN98/2000/NT/XP
    Control method
    Synchronous display with control PC by DVI
    Control System
    Linsn, Nova-star, Colorlight or as you required
    Display Content
    Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
    Interface definition
    HUB75
    Frame Frequency
    ≥60Hz
    Refresh frequency
    ≥1920HZ
    Transmission Distance
    Multi mode fiber <500m, single mode fiber <30km,internet cable
    Operation Parameter
    Working Voltage
    AC220±10% 50Hz/AC110±10% 60Hz
    storage Temperature
    35℃~+85℃
    Working Temperature
    -20℃~+60℃
    Humidity
    10%-95%
    Life Span Time
    ≥100000 hours
    MTBF
    ≥5,000hours
    Screen Plainness
    <±1mm
    Blind Spot Rate
    <0.0001
    Certificate
    CE, RoHS, FCC
    Application
    Outdoor, Indoor Rental Purpose
