    P10 Outdoor Fixed LED Display Good Heat Dissipation And Size Customized

    Ask Lasest Price
    Brand Name : Reiss
    Model Number : P10
    Certification : ROHS CE FCC UL EMS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    P10 Outdoor Fixed LED Display Good Heat Dissipation And Size Customized


    High Definition Outdoor Advertising LED Display Waterproof P10 Outdoor LED screen

    • SMD LED with Best Color Uniformity and High Brightness.
    • High Refresh Rate and High Grey Grade with Reliable Driving IC.
    • Best Power Supply of Meanwell PSU of CE, UL Approved.
    • Waterproof Outdoor IP65 LED Cabinet Can be Customized according to required LED Display Size.

    Application

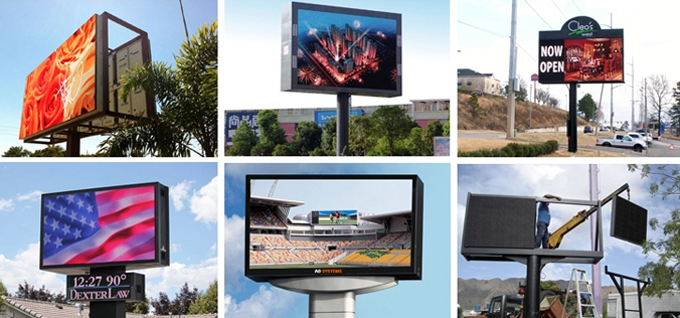

    Widely used in stage,singing and dancing events,various conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,Multi-purpose hall,conference room,interpretation hall,Di Bar,night club,high-end entertainment disco,TV station Spring Festival Evening,auto show,important large cities and municipalities cultural activities,etc.

    P10 LED Video Wall Specifications:

    LED Module
    Resolution
    64(H)×32(V)
    Pitch
    10mm
    Density
    62500 pixels/㎡
    LED Arrangement
    SMD3535
    Driver Mode
    1/4 Scan, Constant Current
    Size
    320mm×160mm
    Mask
    Pure Black mask-high contrast screen
    LED Cabinet
    Cabinet Size
    768mm,1024mm,1280mm are Available
    Cabinet Material
    Steel or Aluminum
    Weight
    About 45 kg/m2
    Electricity Parameter
    Optical Ratings
    Brightness
    ≥6500nits
    View Angle
    120 degree ( horizontal) 120degree(vertical)
    View Distance
    10m-100m
    Gray Scale
    8bits input, correction with 14bits
    Display Color
    16.7M
    Brightness Adjustment
    100 levels
    Power Supply
    Power Input
    AC110V/ 220V ±10, 50HZ
    Maximum power
    1250W/sqm
    Ave. Power Consumption
    250W/sqm
    Control System
    Correction Scale Level
    16bits
    Frame Update Frequency
    60Hz
    Screen Refresh Frequency
    ≥ 192 0HZ/S
    Gamma Correction
    -5.0—5.0
    Support Input
    Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
    Control Distance
    Ethernet cable 100m, optical fiber 5km
    Support VGA Mode
    800×600,1024×768,1280×1024,1600×1200
    Color Temperature
    5000-9300 adjustable
    Brightness Correction
    dot by dot, module by module, cabinet by cabinet
    Reliability
    Operating Temp.
    -20-60 Celsius degree
    Operating Humidity
    10-95% RH
    Operating Life
    100,000 hours
    MTBF
    5000 hours
    Continuous Working Time
    ≥48 hours
    Protection Level
    IP65 Waterproof
    Out of Control Pixel Rate
    0.01%
