    Fixed Outdoor Front Service LED Display Easy Installation Good Weather Resistance

    Ask Lasest Price
    Brand Name : REISS
    Model Number : p8
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 7-10 work days
    Certification : CE ROHS FCC EMS
    Supply Ability : 200000000000
    Price : Negotiable
    • Product Details
    • Company Profile

    Fixed Outdoor Front Service LED Display Easy Installation Good Weather Resistance

    P8 SMD outdoor module front maintain led display


    This cabinet of SMD outdoor module front maintain led display can be make up large advertising led wall with

    great advertising effect. It's suitable for stage, bank, promotion, exhibition, station, KTV, stadium,

    airport and all outdoor places.

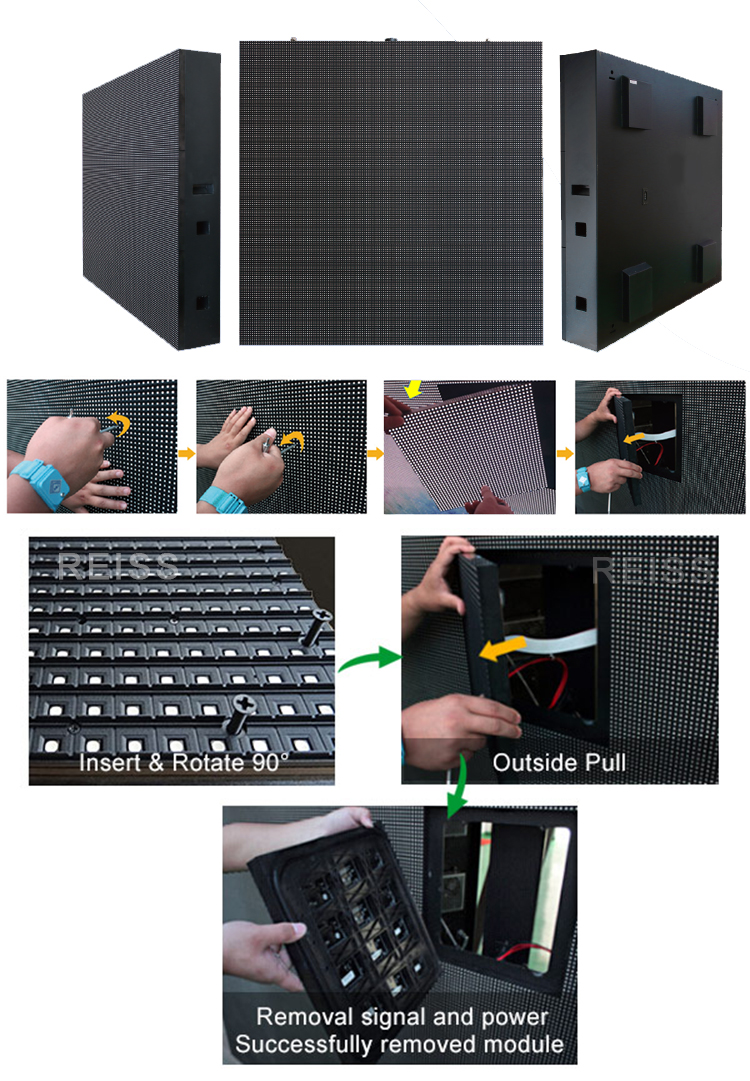

    Ultra-thin cabinet design, easy for install


    We adopt advanced technology to manufacture front service available led module. No maintain space

    needed which make it suitable for different install environment. Ultra-thin cabinet and modular design

    can save install and maintain cost for you and also improve work efficiency.

    Fast and easy install


    Accurate, fast, flexible positioning installation, can effectively deal with different installation environment.

    outdoor full-color P6 LED display
    Parameter Name
    Performance indicators
    Basic
    LED Encapsulation:
    SMD3535
    parameter
    Physical center spacing:
    8 mm
    Physical density:
    27777 / ㎡
    Luminescent spot color:
    1 r1g1b
    Color display:
    16777216
    Module size:
    320mm * 160 mm
    Module resolution:
    40(W) * 20 (H)
    Color temperature (K) :
    Adjustable. 3200-9300
    White balance brightness:
    Greater than 7000cd/m2 (brightness adjustable)
    Processing
    Gray level:
    RGB each level 256
    performance
    Gray scale changing frequency:
    60 or higher (frame)/SEC.
    Scanning frequency:
    > 1200 hz/SEC.
    Driving mode:
    Constant current drive
    Scanning mode:
    1/8 scanning
    Interface definition:
    HUB75
    structural
    Regular cabinet size:
    960mm * 960mm (united sink technology die casting aluminum)
    parameters
    Conventional box resolution:
    120* 120
    Box flatness:
    ≤0.1mm
    Box thickness:
    ≤85mm
    Maintenance mode:
    Before and after the maintenance
    Electrical
    Peak power consumption:
    560w / ㎡
    parameters
    Average power consumption:
    Normal use of power 188w / ㎡ (actual)
    Power supply requirements:
    AC220V + (15%), 47-64 hz
    Power switch:
    Automatic switch
    Security features:
    GB4943 / EN60950
    Control
    Control host (CPU) :
    Pentium4 or above P4 or above
    parameters
    Operating system:
    Above WIN98/2000 / NT/XP
    Control mode:
    Synchronize with the computer VGA
    Graphics card requirements:
    DVI graphics
    Network card requirements:
    Gigabit nics
    Display mode:
    1920 x 1280
    Control mode:
    Synchronous or asynchronous
    Control distance:
    < 100mb (no relay);After > 100m, the relay amplifier
    or optical fiber communication is adopted
    whole screen
    Life of LED theory:
    > 100000 hours
    parameters
    Best view:
    6m to 100 m
    Blind spot rate:
    Half a million
    Visual level (W) :
    P 160 °
    Visual vertical Angle (H) :
    P 160 °
    Storage environment temperature:
    - 35 ℃ ~ + 85 ℃
    Storage environment humidity:
    10% 50% without condensation
    Working environment temperature:
    - 20 ℃ ~ 60 ℃;
    Work environment humidity:
    10% - 85%.
