    P2.5 Indoor LED Video Panel Rental Low Attenuation Fast Heat Dissipation

    Ask Lasest Price
    Certification : CE ROHS FCC EMS
    Delivery Time : 5-8
    Brand Name : Reiss
    Model Number : RSIN-P2.5
    Price : Negotiable
    • Product Details
    • Company Profile

    P2.5 Indoor LED Video Panel Rental Low Attenuation Fast Heat Dissipation

    Full Color P2.5 LED Display
    Main
    Model
    CN-P2.5-32S
    Module
    Pixel pitch(mm)
    2.5
    LED Lamp Model
    SMD2121
    Module Size(W*H)
    160*160 mm
    Module Size(W*H)
    6.3*6.3 inch
    Module Resolution(W*H)
    64*64
    Driving Mode
    Constant drive
    Scan Mode
    1/32
    Pixel configuration (R,G,B)
    1R,1G,1B
    Color temperature (K) :
    3200-9300
    Grey scale/colors
    256levels of each color(RGB)/16.7M colors
    Cabinet
    Standard Cabinet Size(mm)
    480*480*60
    (W*H*T)
    Cabinet Resolution(W*H)
    192*192
    Cabinet Module Number
    9PCS
    IP Grade
    IP31
    Cabinet Weigh(kg)
    5.5
    Cabinet Material
    Die Casting Aluminum
    Display
    Best Viewing Distance(m)
    2.5-50
    Pixel Density (dot/m2)
    160000
    Brightness(cd/m2)
    ≥1200
    Power Max Consumption (W/m2)
    ≤1200
    Power Average Consumption (W/m2)
    400
    View angle
    H:160; V:160
    system Specification
    Control host (CPU) :
    Pentium4 or above
    Operating system:
    WIN98/2000/NT/XP

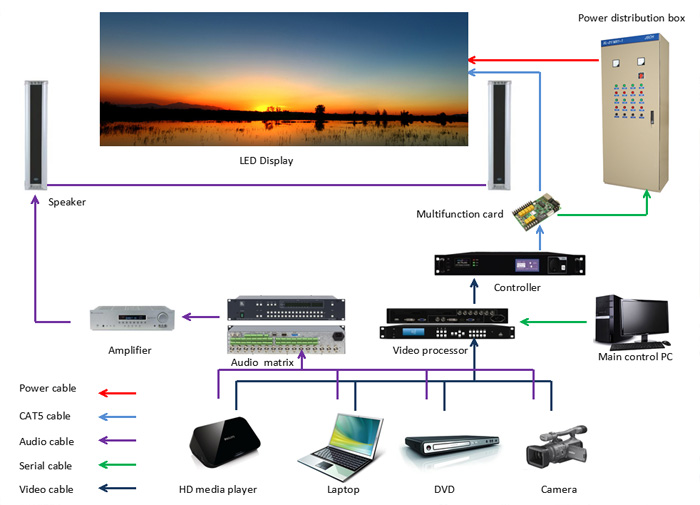

    Control method
    Synchronous display with control PC by DVI
    Control System
    Linsn, Nova-star, Colorlight or as you required
    Display Content
    Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
    Interface definition
    HUB75
    Frame Frequency
    ≥60Hz
    Refresh frequency
    1920HZ/3840HZ
    Transmission Distance
    Multi mode fiber <500m, single mode fiber <30km,internet cable
    Operation Parameter
    Working Voltage
    AC220±10% 50Hz/AC110±10% 60Hz
    storage Temperature
    35℃~+85℃
    Working Temperature
    -20℃~+60℃
    Humidity
    10%-95%
    Life Span Time
    ≥100000 hours
    MTBF
    ≥5,000hours
    Screen Plainness
    <±1mm
    Blind Spot Rate
    <0.0001
    Certificate
    CE, RoHS, FCC
